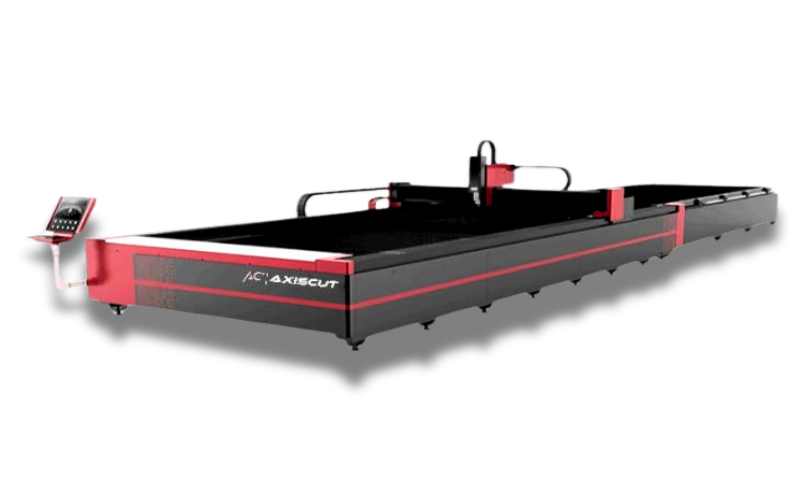

CNC Double Pallet Open Type Laser Cutting Machine

The CNC Double Pallet Open Type Fiber Laser Cutting Machine is engineered for high-volume, fast-paced production environments. Featuring a dual pallet system, this machine significantly boosts productivity by enabling continuous cutting with minimal downtime. Ideal for metal fabrication and industrial manufacturing, it offers superior cutting precision, efficiency, and flexibility.

Following are key features of CNC Double Pallet Open Type Laser Cutting Machine:

1. Dual Pallet System for Continuous Production:

  • Equipped with a double pallet design, allowing for automatic pallet exchange. While one pallet is actively cutting, the second can be loaded or unloaded, ensuring minimal downtime between jobs and maximizing production efficiency
  • Increases workflow efficiency in high-volume manufacturing, reducing setup times and labor costs.

2. High-Precision Fiber Laser:

  • Powered by advanced fiber laser technology, available in power options ranging from 2kW to 12kW for cutting various materials such as stainless steel, carbon steel, aluminum, copper, and brass

3. Exceptional Cutting Speed:

  • Capable of achieving speeds up to 120 m/min, delivering fast and precise cuts for both thin and thick materials

4. Open-Type Design:

  • The open frame structure allows easy access from all sides, making material handling more efficient and reducing cycle times.
  • Ideal for large workpieces or awkwardly shaped materials that require quick setup and removal.

5. CNC Control System:

  • Integrated with a user-friendly CNC control panel that allows precise operation of the laser cutting process. The software supports advanced nesting functions, maximizing material utilization and minimizing waste.

6. Automated operation:

  • The CNC system automates cutting tasks based on CAD/CAM designs, ensuring repeatable, high-accuracy results with minimal manual intervention

7. High-Power Performance:

  • Available in multiple power configurations, from 2kW to 12kW, ensuring that your machine can handle a wide range of cutting needs, from thin sheets to thick metal plates.
  • Supports high-speed processing, achieving fine cutting tolerances of up to ±0.02 mm for precise and complex parts manufacturing.

8. Efficient Cooling and Ventilation:

  • The machine includes a powerful water cooling system to regulate the temperature of the laser source and prevent overheating during extended cutting operations.
  • An integrated ventilation system with HEPA and carbon filters ensures clean air by removing fumes and particulates generated during the cutting process.

9. Material Versatility:

  • Capable of cutting a wide range of materials, including mild steel, stainless steel, aluminum, brass, and copper. It delivers exceptional performance across different thicknesses, making it ideal for industrial manufacturing, metal fabrication, automotive, and aerospace industries.

Technical Specifications:

Model Power Options Cutting Area Max Cutting Thickness Max Cutting Speed Positioning Accuracy
DP-3015 2kW, 3kW 3000 x 1500 mm Up to 20 mm (Mild steel) Up to 100 m/min ±0.02 mm
DP-4020 3kW, 6kW 4000 x 2000 mm Up to 25 mm (Mild steel) Up to 120 m/min ±0.02 mm
DP-6525 3kW, 6kW, 12kW 6500 x 2500 mm Up to 35 mm (Mild steel) Up to 120 m/min ±0.01 mm

Supported Materials & Thickness:

Mild Steel: Up to 35 mm
Stainless Steel: Up to 30 mm
Aluminum: Up to 25 mm
Brass/Copper: Up to 15 mm
Power Supply:
Voltage: 380V/50Hz (customizable for other regions)
Power Consumption: Varies based on laser output, approximately 12-30 kW.

Advanced Features:

Fast Pallet Exchange: The double pallet system can exchange pallets in less than 15 seconds, reducing waiting times and increasing overall productivity.
Real-Time Monitoring: An integrated camera system allows remote monitoring of the cutting process, providing real-time updates and ensuring quality control during production.
Smart Automation: Optional integration with robotic loading/unloading systems for fully automated operations.

Core Technology:

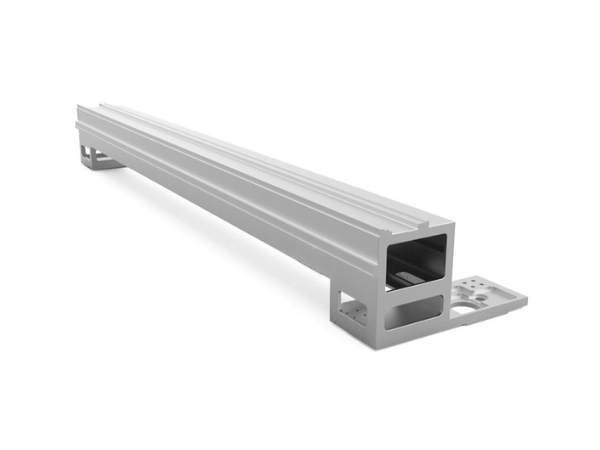

CAST ALUMINUM BEAM

  • Light weight
  • Fast speed
  • High precision
  • Toughness and ductility

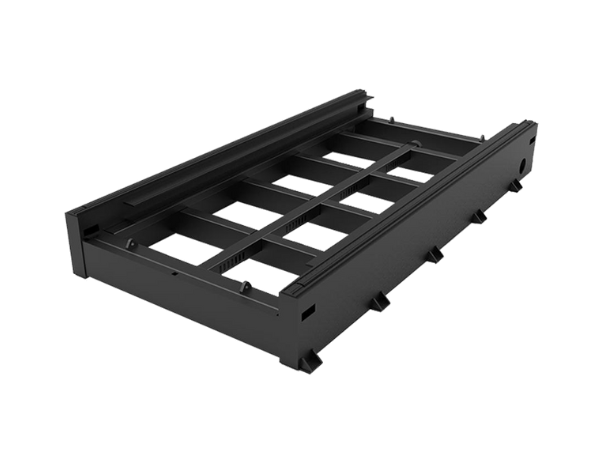

High Power Board Welding Bed:

Heavy DutyBed design

  • Double annealing aging
  • High strength
  • No deformation

Applications:

Ideal for high-precision cutting in industries such as:

  • Automotive: Cutting metal components and body parts.
  • Industrial Fabrication: Cutting sheet metal for machinery, enclosures, and equipment.
  • Aerospace: Producing lightweight, precise parts with tight tolerances.
  • Metal Furniture: Cutting metal sheets for frames and decorative application
