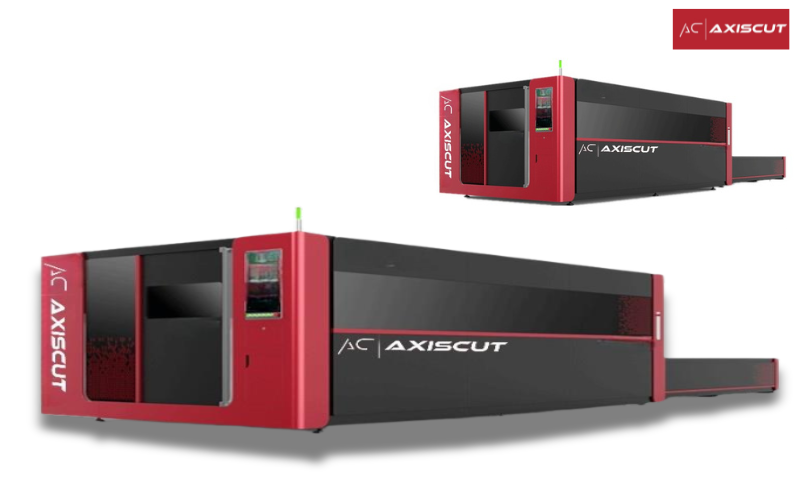

CNC Encloser Type Fiber Laser Cutting Machine

Enhance your cutting precision and efficiency with our CNC Enclosure Type Fiber Laser Cutting Machine—designed to deliver unmatched performance for high-speed, accurate cutting in a safe and controlled environment. This cutting-edge machine is ideal for a variety of industries, including metal fabrication, automotive, aerospace, and electronics.

Following are key features of CNC Encloser Type Fiber Laser Cutting Machine:

1. High-Performance Fiber Laser:

  • Powered by advanced fiber laser technology, offering superior energy efficiency and precise cutting on various materials such as stainless steel, carbon steel, aluminum, brass, and copper.
  • Available in multiple power outputs ranging from 1kW to 12kW, ensuring optimal performance for both light and heavy-duty cutting operations.

2. Precision CNC Control:

  • Equipped with CNC (Computer Numerical Control) for precise, automated cutting. Achieve intricate designs and high-quality cuts with minimal manual intervention, enhancing productivity and reducing waste.
  • Controller Interface: Easy-to-use touchscreen interface with preloaded settings for different materials and thicknesses, along with real time monitoring of the cutting process

3. Full Protective Enclosure:

  • A robust enclosure made from high-strength steel and laser-resistant acrylic, ensuring maximum protection from laser exposure and flying debris. This enclosed design ensures operator safety and complies with international safety standards.
  • Automatic Interlock System: The door interlock feature halts laser operation when the enclosure is opened, preventing accidental exposure.

4. Advanced Filtration & Ventilation:

  • An integrated high-efficiency ventilation system with HEPA and activated carbon filters to effectively remove harmful fumes, dust, and smoke, ensuring a clean and safe working environment.
  • Airflow Capacity: Up to 800 CFM for optimal air quality during high-power laser operations.

5. High-Speed Cutting:

  • Capable of cutting at speeds up to 120 m/min with high precision, reducing production time while maintaining accuracy.
  • Precision Accuracy: Cutting tolerances as fine as ±0.03 mm, making it ideal for detailed and complex part manufacturing.

6. Automatic Loading & Unloading System:

  • Optional automatic sheet loading and unloading systems to streamline production, saving time and reducing labor costs.

7. Cooling System:

  • An integrated water cooling system that efficiently regulates the temperature of the laser source and vital electronic components, preventing overheating during extended use.

Technical Specifications:

Model Power Options Cutting Area Max Cutting Thickness Max Cutting Speed Positioning Accuracy
3015E 1kW, 2kW, 3kW 3000 x 1500 mm Up to 20 mm (Mild steel) Up to 100 m/min ±0.03 mm
4020E 3KW, 4kW, 6kW 4000 x 2000 mm Up to 25 mm (Mild steel) Up to 120 m/min ±0.02 mm
6525E 3kW, 6kW, 12kW 6500 x 2500 mm Up to 40 mm (Mild steel) Up to 120 m/min ±0.02 mm

Supported Materials & Thickness:

Mild Steel: Up to 40 mm
Stainless Steel: Up to 30 mm
Aluminum: Up to 25 mm
Piercing Capacity: Up to 15 mm

Power Supply:

Voltage: 380V/50Hz (customizable for other regions)
Power Consumption: Varies based on laser output, approximately 10-25 kW.

Applications:

Ideal for industries including:

  • Metal fabrication for automotive parts, machinery components, electrical cabinets, kitchen appliances, and decorative metal works.
  • Aerospace and Aviation for producing lightweight, high-precision parts.
  • Electronics for cutting enclosures, frames, and specialized parts.

Core Technology:

CAST ALUMINUM BEAM

  • Light weight
  • Fast speed
  • High precision
  • Toughness and ductility

High Power Board Welding Bed:

Heavy DutyBed design

  • Double annealing aging
  • High strength
  • No deformation

Advantages of a CNC Enclosure type Laser Cutting:

  • Safety: Protects the operator from laser exposure and accidental contact with moving parts.
  • Dust and Fume Control: Keeps the workspace clean by containing the debris and fumes, which can be harmful in a typical workshop.
  • Noise Reduction: Reduces noise produced during cutting, improving the working environment.
  • Precision and Efficiency: The CNC system ensures highly precise cuts based on the digital designs input into the machine, ideal for complex patterns and large production runs.
