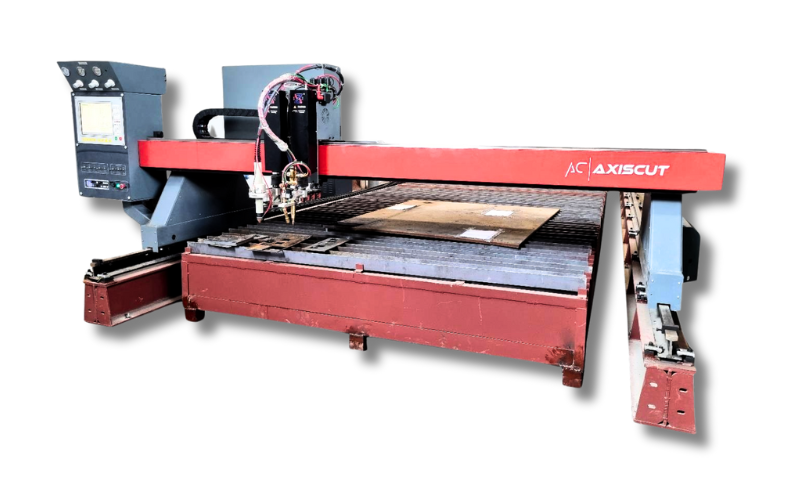

CNC Plasma Cutting Machine
At Axiscut India Private Limited, we specialize in precision CNC Plasma Cutting machines, delivering exceptional metal fabrication solutions for industries of all sizes. With state-of-the-art technology and a team of skilled engineers, we provide cutting services that meet the highest standards of accuracy and efficiency.
Our CNC Plasma Cutting machines are designed to handle a wide range of materials, from steel and aluminum to custom alloys, ensuring top quality results with every cut. Whether you need complex designs, bulk production, or customized metal parts, we have the expertise and equipment to bring your vision to life.
With years of experience and a commitment to innovation, we strive to exceed customer expectations through reliability, superior craftsmanship, and competitive pricing. At Axiscut India Private Limited, we’re not just cutting metal—we’re shaping the future of your projects
Following are key features of CNC Plasma Cutter Systems:
1. Precision Cutting
Delivers highly accurate cuts with minimal material waste, even on complex designs and intricate shapes.
2. High-Speed Performance
Plasma cutting systems offer fast cutting speeds, allowing for high productivity and quick turnaround times.
3. Versatile Material Compatibility
Capable of cutting a wide range of conductive metals, including steel, stainless steel, aluminum, copper, brass, and other alloys.
4. Automated Operation
CNC-controlled, enabling full automation of the cutting process. This ensures consistent quality and reduces manual labor.
5. Cost-Effective Production
Reduces material waste and labor costs through automation and precise cutting. Plasma cutters are also more affordable for certain metal thicknesses compared to other cutting methods like laser or waterjet
6. Wide Range of Thickness
Capable of cutting through various thicknesses of metal, from thin sheets to thick plates, with ease.
7. Clean Edge Finishes
Produces smooth and clean cuts with minimal need for post-processing, reducing the time and effort required for further finishing work.
8. Low Heat-Affected Zone (HAZ)
Delivers highly accurate cuts with minimal material waste, even on complex designs and intricate shapes.
9. Advanced Software Integration
Equipped with CAD/CAM software compatibility, allowing for easy design input, nesting optimization, and more efficient use of materials.
10. Durability and Long Lifespan
Built with robust materials and designed for long-term use, CNC plasma cutters are reliable and require minimal maintenance.
11. Ease of Use
User-friendly interfaces and easy setup, even for operators with minimal experience, make CNC plasma cutting systems accessible to a wide range of users.
12. Portability
Some models are compact and portable, offering flexibility for both shop and field applications.
Technical Data:
1. Cutting Thickness Capacity
Mild Steel: 0.5 mm – 80 mm (varies with plasma power source)
Stainless Steel: 0.5 mm – 80 mm
Aluminum: 0.5 mm – 60 mm
Piercing Capacity: Up to 80 mm (depending on machine power and model)
2. Cutting Speed
Max Cutting Speed: 0 – 20,000 mm/min (depends on material thickness and plasma power)
Minimum Cutting Speed: 100 mm/min (for thick materials)
Optimal Cutting Speed: Automatically adjusted based on material thickness
3. Plasma Power Source
Plasma Output Power: 65A, 85A, 105A, 125A, 200A, 400A, 800A etc.
Input Power: 220V/380V/400V/440V, 3-phase, 50/60 Hz
Duty Cycle: 60% to 100%, depending on the power supply model
4. Working Area
Cutting Table Size: 1,500 mm x 3,000 mm (standard) up to 6,000 mm x 20,000 mm (custom sizes available)
Effective Cutting Width: 1,500 mm – 3,000 mm (or more for large models)
Effective Cutting Length: 3,000 mm – 12,000 mm (customizable)
Z-Axis Travel (Torch Height): 100 mm – 300 mm (automatic height control)
5. Control System
Hypertherm Edge Connect
Eckelmann
2500 DOS based
CNC control system with touchscreen or keypad interface
User-friendly CAD/CAM software compatibility (e.g., AutoCAD, FastCAM, SheetCAM)
Integrated Nesting Software for efficient material use
File format compatibility: DXF, DWG, IGES, and others
6. Positioning Accuracy
Positioning Accuracy: ±0.05 mm
Repositioning Accuracy: ±0.03 mm
7. Drive System
Dual-side rack and pinion drive system for stability and smooth motion
Servo or stepper motors for precise control
High-speed linear guide rails to ensure precise cutting and extended machine life
8. Torch Type
Plasma torch with automatic arc start and adjustable torch height control
Automatic Torch Height Control (ATHC) for maintaining consistent distance from material
9. Piercing and Cutting
Piercing Speed: Automatically optimized based on material thickness
Cutting Techniques: Supports bevel cutting, straight cutting, and hole piercing
10. Air Supply
Required Air Pressure: 6 – 8 bar
Air Consumption: 200 L/min (depends on plasma power source)
11. Cooling System
Air or water-cooled plasma torch depending on the system and power source
Optional water cutting table to reduce heat and fumes
12. Software Features
Sigmanest
Most-2D
Advanced CAD/CAM software for drawing, nesting, and path optimization
Automated toolpath generation for complex shapes and designs
Real-time diagnostics and system monitoring for performance optimization
13. Machine Frame
Heavy-duty steel construction to withstand vibration and prolonged use
Reinforced guide rails for smooth movement and high precision
Optional water or dry cutting table
14. Optional Features
Bevel cutting attachment for angled cuts
Dual-head cutting for increased productivity
Marking tools (for etching or part numbering)
Fume extraction system
Plasma and flame hybrid cutting for versatile applications
15. Weight & Dimensions
Machine Weight: 1,200 kg to 3,500 kg depending on size and configuration
Machine Dimensions: 2,000 mm x 4,000 mm (varies based on model)
16. Cutting Surface Quality
Produces clean, smooth edges with minimal slag on thinner materials
Dross and minimal heat-affected zone (HAZ) on thicker materials
