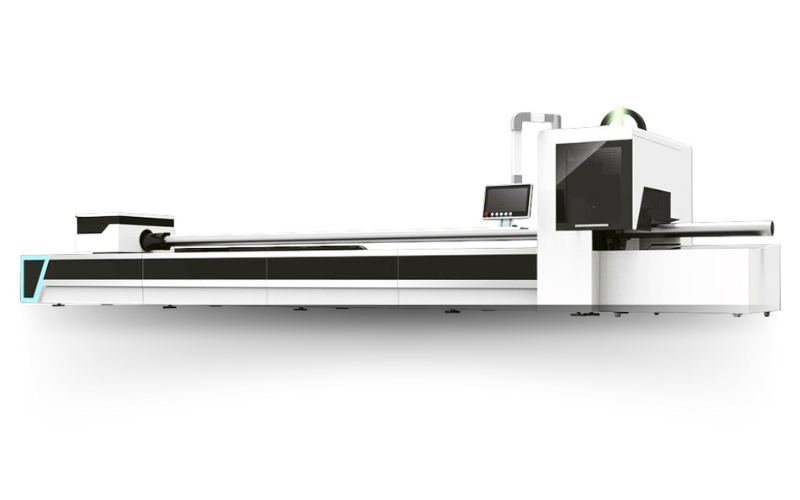

CNC Pipe Fiber Laser Cutting Machine

The CNC Pipe Fiber Laser Cutting Machine is designed specifically for high-precision cutting of metal pipes and tubes. Engineered to handle a variety of shapes and materials, this machine provides exceptional cutting performance for industries such as automotive, construction, aerospace, and more. With its advanced fiber laser technology and CNC control, it delivers fast, accurate cuts with minimal waste and maximum productivity.

Following are key features of CNC Pipe Laser Cutting Machine:

1. Advanced Fiber Laser Technology:

  • Powered by high-performance fiber laser sources ranging from 1kW to 6kW, providing superior energy efficiency and cutting speed for various types of metal pipes, including round, square, rectangular, oval, and custom shapes.
  • Perfect for cutting carbon steel, stainless steel, aluminum, brass, and copper tubes with high precision.

2. Dedicated Pipe and Tube Cutting System:

  • This machine is specifically designed for pipe and tube cutting, with specialized fixtures and a rotary axis that holds and rotates the material during cutting for consistent, high-quality results.
  • Supports a wide range of tube diameters and lengths, offering flexibility for both small and large projects

3. CNC Precision Control:

  • Equipped with a state-of-the-art CNC control system, the machine allows for precise and automated cutting based on CAD/CAM designs. The CNC system ensures repeatable accuracy and reduces material waste.
  • Automated Material Feeding: The machine can automatically adjust to different pipe sizes, making it ideal for both short-run and high-volume production.

4. High-Speed Cutting:

  • Capable of cutting at speeds up to 100 m/min, the CNC Pipe Fiber Laser Cutting Machine drastically reduces production time while maintaining high cutting accuracy.
  • Cutting Accuracy: Achieves tight tolerances of ±0.02 mm, ensuring precision cuts even for complex shapes and designs.

5. Wide Compatibility with Pipe Sizes:

  • Cutting Length: Supports pipe lengths up to 6000 mm.
  • Pipe Diameter Range: Can accommodate pipes with diameters ranging from 20 mm to 300 mm, making it versatile for different applications.

6. Automatic Chuck System:

  • The machine features an automatic pneumatic chuck system for quick and easy clamping of pipes and tubes. This system automatically centers and holds the material securely, improving cutting precision and reducing setup times.
  • Ideal for both small-diameter pipes and larger tubes.

7. Advanced Cooling & Ventilation:

  • A powerful water cooling system ensures that the laser source operates at optimal temperatures, even during long production runs. This prevents overheating and extends the lifespan of critical components.
  • An efficient ventilation system with HEPA filters removes harmful fumes and particles produced during the cutting process, keeping the workspace safe and clean.

8. Open and Accessible Design:

  • The open structure allows for easy loading and unloading of pipes and tubes, making material handling efficient and user-friendly.
  • Ergonomic Design: Allows operators to access the machine from multiple angles, facilitating faster adjustments and minimizing downtime.

Technical Specifications:

Model Power Options Max Cutting Length Pipe Diameter Range Max Cutting Speed Positioning Accuracy
PT-6020 1kW, 2kW, 3kW Up to 6000 mm 20 mm to 200 mm Up to 80 m/min ±0.02 mm
PT-8020 3kW, 6kW Up to 8000 mm 20 mm to 300 mm Up to 100 m/min ±0.02 mm

Supported Materials & Thickness:

Mild Steel: : Up to 16 mm
Stainless Steel: Up to 12 mm
Aluminum: Up to 10 mm
Brass/Copper: Up to 8 mm
Dimension:
PT-6020: : 12000 x 3500 x 2400 mm
PT-8020: 14000 x 4000 x 2400 mm
Power Supply:
Voltage: 380V/50Hz (customizable for other regions)
Power Consumption: Varies based on laser output, typically 8-18 kW

Additional Features:

1. Fast Setup and Changeover: The automatic chuck system and CNC controls allow for quick adjustments between different pipe sizes, reducing setup times and increasing productivity.
2. Real-Time Monitoring: A Optional real-time camera monitoring system provides live feedback on the cutting process, ensuring quality control and precision.
3. Optional 3D Cutting: The machine can be upgraded with a 3D laser cutting head, enabling it to cut bevels and angled edges, making it suitable for more complex tube structures

Applications:

The CNC Pipe Fiber Laser Cutting Machine is widely used across industries for producing high-quality, precise components:

  • Automotive Industry: Cutting exhaust systems, structural components, and precision parts.
  • Construction: Cutting metal pipes for frameworks, railings, and structural applications.
  • Furniture Manufacturing: Creating tubular frames and components for metal furniture.
  • Aerospace: Cutting lightweight, high-strength metal tubes for structural use
