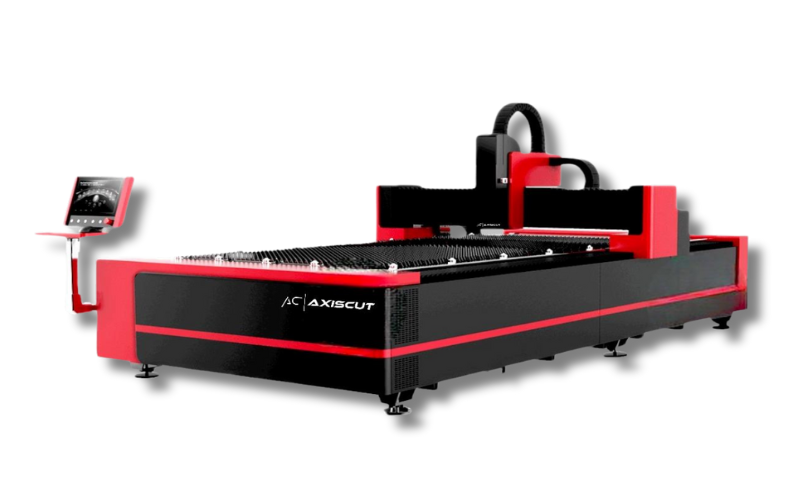

CNC Single Pallet Fiber Laser Cutting Machine

Our CNC Single Pallet Open Type Fiber Laser Cutting Machine is designed for precision cutting in an open and accessible format, ideal for a wide range of metalworking and industrial applications. Combining advanced fiber laser technology with an open-frame design, this machine is perfect for high-speed cutting with exceptional accuracy, catering to businesses in metal fabrication, automotive, electronics, and more.

Following are key features of CNC Single Pallet Fiber Laser Cutting Machine:

1. High-Efficiency Fiber Laser:

  • Available in power ranges from 1kW to 12kW, our fiber laser cutting machine provides unparalleled performance across various materials such as stainless steel, carbon steel, aluminum, brass, and copper.
  • Superior Energy Efficiency: Fiber laser technology ensures low energy consumption while delivering high-speed, precise cuts for both thin and thick materials

2. Open-Type Design:

  • The single pallet open-frame design offers easy access from all sides, making material handling quicker and more convenient. This design is ideal for cutting large sheets or irregularly shaped materials without obstruction.
  • Ergonomic Material Loading: The open structure allows for fast loading and unloading of materials, reducing setup time and increasing operational efficiency.

3. CNC Precision Control:

  • Integrated with an advanced CNC control system, the machine allows users to perform highly accurate cuts with minimal manual input. The user-friendly interface supports CAD/CAM designs, ensuring precise, automated cutting that optimizes material usage.
  • Automated Cutting: The CNC system enables efficient, repeatable results with cutting tolerances as fine as ±0.02 mm.

4. Single Pallet for Flexible Operations:

  • The single pallet configuration is ideal for small to medium-sized production runs.
  • It offers flexibility in operation while maintaining high productivity for both short-run and long-run manufacturing processes.

5. Fast and Accurate Cutting:

  • With cutting speeds up to 120 m/min, this machine is designed to deliver rapid, high-quality cuts. It handles various thicknesses, from thin sheets to thicker plates, making it versatile for different applications.
  • Cutting Accuracy: Achieves precision cuts with a positioning accuracy of ±0.02 mm, perfect for producing detailed parts with intricate designs.

6. Advanced Cooling & Ventilation:

  • An integrated water cooling system ensures that the laser source and vital components stay cool during extended operations, preventing overheating and ensuring continuous productivity.
  • A high-efficiency ventilation system with HEPA and activated carbon filters keeps the working environment safe by filtering fumes and particulates generated during cutting.

7. Material Compatibility:

  • The machine is capable of cutting a wide variety of metals, including mild steel, stainless steel, aluminum, brass, and copper. It offers exceptional versatility for industries that require precision and quality across different materials and thicknesses.

Technical Specifications:

Model Power Options Cutting Area Max Cutting Thickness Max Cutting Speed Positioning Accuracy
SP-3015 1kW, 2kW, 3kW 3000 x 1500 mm Up to 20 mm (Mild steel) Up to 100 m/min ±0.02 mm
SP-4020 3kW, 6kW 4000 x 2000 mm Up to 25 mm (Mild steel) Up to 120 m/min ±0.02 mm
SP-6525 3kW, 6kW, 12kW 6500 x 2500 mm Up to 30 mm (Mild steel) Up to 120 m/min ±0.01 mm

Supported Materials & Thickness:

Mild Steel: Up to 30 mm
Stainless Steel: Up to 25 mm
Aluminum: Up to 20 mm
Brass/Copper: Up to 15 mm
Power Supply:
Voltage: 380V/50Hz (customizable for other regions)
Power Consumption: Varies based on laser output, typically 10-25 kW

Additional Features:

1. Quick Setup: The open-frame design allows for fast and easy material setup, ideal for businesses needing rapid changeovers between jobs.
2. Real-Time Monitoring: An optional real-time monitoring system can be integrated to provide operators with live feedback on the cutting process, ensuring precise results and quality control.
3. Smart Automation: Supports future upgrades to include automation features, such as automatic material loading and unloading systems.

Applications:

The CNC Single Pallet Fiber Laser Cutting Machine is versatile and ideal for various industries, including:

Metal Fabrication: Perfect for cutting metal sheets, tubes, and other components.
Automotive Industry: Producing precise metal parts and components for vehicles.
Aerospace: Ideal for high-precision, lightweight component manufacturing.
Electronics: Cutting thin metal enclosures, brackets, and housings.

Core Technology:

Cast Aluminum Beam

  • Light weight
  • Fast speed
  • High precision
  • Toughness and ductility

High Power Board Welding Bed:

Heavy DutyBed design

  • Double annealing aging
  • High strength
  • No deformation
